ENGINE SWAP BREAKDOWN

• Chassis: 1987 BMW e30 325

• ENGINE SWAP: NISSAN RB25DET NEO

• TURBO: BORGWaRNER s257

  • Electronic Boost CONTROLLER

• WASTE-GATE: FORGE MOTORSPORT LIQUID COOLED 50MM

• ECU & TUNE:

  • ECU: LINKECU G4+ GTTLINK – NGTT+ ECU

  • ADDITIONAL ECU Items:

    • LINK ADAPTOR HARNESS (MASS AIRFLOW to MANIFOLD PRESSURE SENSOR)

    • LINK ECU 3 BAR ABSOLUTE MANIFOLD PRESSURE SENSOR

• CUSTOM TUNE: TUNED BY OUR DESIGNER/DRIVER DAN JAKIELA AND NOSTRUM HIGH PERFORMANCE

• EXHAUST SET UP: FULL CUSTOM 3” V-BANDED

• EXHAUST MANIFOLD: TWISTED MOTION (TOP MOUNT WITH EXTERNAL PORT)

• VALVE COVERS: AUTECH RB20 GTS-R EDITION

• FUEL PRESSURE REGULATOR: FORGE MOTORSPORT DIGITAL

• INTAKE MANIFOLD: DEEPMOTOR INTAKE MANIFOLD (90MM THROTTLE BODY)

• WIRING HARNESS: CUSTOM WIRING SPECIALTIES PRO RACE HARNESS

• FUEL SYSTEM:

  • E85/FLEX FUEL SETUP by NOSTRUM HP

  • FUEL INJECTORS: NOSTRUM HP (950CC)

  • FUEL CELL: REAR MOUNTED 8 GALLON CELL WITH SURGE TANK

  • FUEL PUMPs: TWIN MOSTPLUS 380LPH PUMPS

  • FUEL LINES: -8AN BRAIDED FUEL LINES

  • FUEL PRESSURE REGULATOR: FORGE MOTORSPORT DIGITAL

• Cooling System:

  • INTERCOOLER: MISHIMOTO R-LINE INTERCOOLER

  • RADIATOR: REAR MOUNTED MISHIMOTO DUEL PASS RADIATOR

  • RADIATOR FANS: MISHIMOTO 12” HIGH-FLOW RACE LINE FAN

  • COOLANT OVERFLOW TANK: MISHIMOTO RACING COOLANT OVERFLOW TANK

BODY WORK & INTERIOR SET UP

• Wide Body Kit: CUSTOM EURO Style

• SIde Skirts: CUSTOM 6 IN. SIDE SKIRTS

• Rear Lip Spoiler: DTMFIBERWERKZ

• HOOD VENTS: STIM TECH E30 aluMINUM VENTS

• PAINT: AUDI MERLIN PURPLE

• VINYL WRAP: Metallic Silver (all vinyl printed in-house)

• FRONT END: FULL CUSTOM TUBULAR FRONT END

• ROLL CAGE: CUSTOM 8 POINT ROLL CAGE

• SEATS: NRG FRP-RS600M RACING

• SEAT BRACKETS: GARAGISTIC (BILLET)

• SEAT-BELTS: NRG INNOVATIONS

• CAR LIGHTS:

  • FRONT: HARLEY DAVIDSON AFTERMARKET LED’S

  • REAR: BLACKOUT E30 TAIL LIGHTS (BLACK EXTERIOR, RED ALUMINATION)

• WHEELS: APEX SM-10 (18X10.5)

• WHEEL SPACERS:

  • FRONT: 20MM 5X120 - 5X120

  • REAR: 6" 4X100 - 5X120

TRANSMISSION & SUSPENSION

• Transmission Set Up:

  • TRANSMISSION: SAMSONAS H PATTERN DOGBOX

  • CLUTCH: SPEC STAGE 5 CERAMIC CLUTCH

  • FLYWHEEL: CLUTCH MASTERS LIGHTWEIGHT RB25 STEEL

  • TRANSMISSION MOUNTS: CUSTOM

  • DRIVESHAFT: CUSTOM 1 PIECE DRIVE SHAFT

  • REAR DIFFERENTIAL: BMW 4.10 RATIO

• SUSPENSION SET UP:

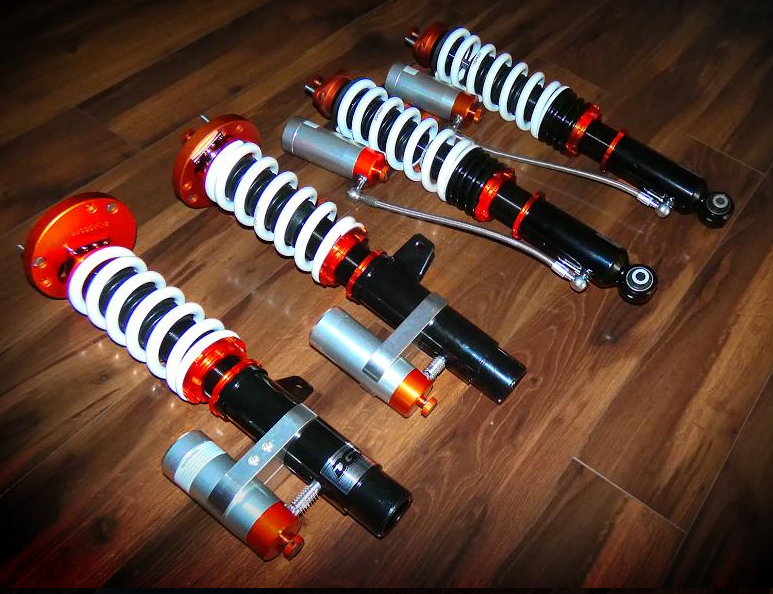

  • COILOVERS: DGR CUSTOM FULLY ADJUSTABLE 2-WAY RACE SUSPENSION

  • LOLLIPOP BUSHINGS: TREEHOUSE RACING

  • ADJUSTABLE TOP HATS: SLR ADJUSTABLE TOP HATS

  • DRIFT ANGLE KIT: SLR ULTRA DRIFT ANGLE KIT

  • STEERING RACK: BMW Z3 CLOSE RATIO RACK

  • REAR END BUSHINGS: FULL REAR REVSHIFT KIT

BRAKES & MISC.

• BRAKE SYSTEM SETUp:

  • BRAKE CALIPERS:

    • E46 FRONT CALIPERS

    • TWIN E30 REAR CALIPERS

  • BRAKE PEDALS: WILWOOD BRAKE, CLUTCH, AND THROTTLE PEDAL ASSEMBLY

  • BRAKE CYLINDERS: WILWOOD COMPACT ALUMINUM MASTER CYLINDER

  • BRAKE LINES: -3AN STAINLESS BRAIDED

  • REAR BRAKES: DUAL OEM HYDRAULIC CALIPERS

  • HAND BRAKE: REMOTE MOUNT STIM. TECH HYDRAULIC BRAKE

• MISCELLANEOUS:

  • GAUGE SETUP: LINK ECU CUSTOM GAUGES via 11” MICROSOFT SURFACE

  • O2 SENSORS: INNOVATE MOTORSPORTS WIDE-BAND O2 SENSORS

  • BATTERY: ODYSSEY EXTREME SERIES RACING BATTERY

  • TIRES: NEXEN SUR4G 255/35ZR18

  • POWER-TRAIN LUBRICANTS: LUCAS OIL
